Discover the advanced Panasonic TLD systems—an innovative solution for precise multi-phosphor dosimeter processing that continues to serve radiation safety professionals with efficiency and reliability. Even after the closure of Panasonic’s TLD production facilities in 2020, these systems remain a top choice due to their exceptional durability and performance.

Panasonic TLD Readers

Despite no longer being in production, Panasonic TLD readers still boast an expected operational lifespan of 10 to 20 years, making them a wise investment for long-term use in radiation safety monitoring. These readers continue to deliver high accuracy, fast processing, and exceptional performance, making them ideal for use in a variety of industries, including medical, nuclear, and industrial environments.

Refurbished Panasonic TLD Readers

We offer new and refurbished Panasonic TLD readers, giving you options that match your radiation monitoring needs while ensuring optimal performance and longevity. Our refurbished units undergo rigorous testing to meet high-quality standards, ensuring that they deliver reliable and accurate readings for years to come.

Panasonic UD-706 TLD reader with operator controls and printer detail.
Panasonic UD-716AGL TLD reader and auto changer with diagnostic display, glow curve and operating manual.

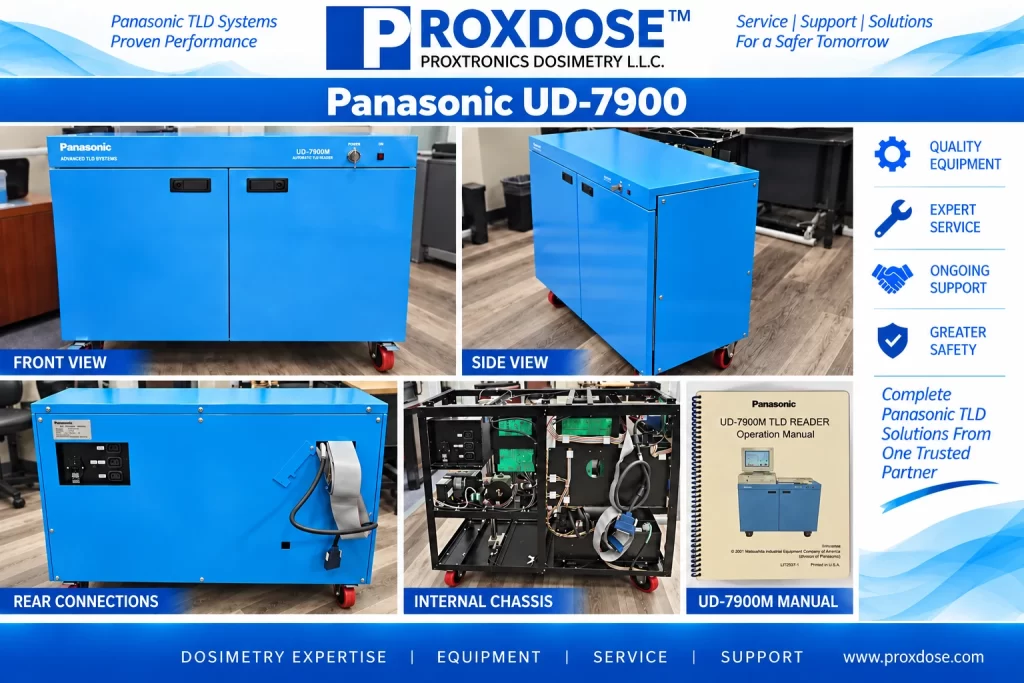

Panasonic UD-7900 series TLD reader showing front, side, rear connections, and internal components
Request a Reader Quote
Panasonic UD-794 automatic TLD irradiators with equipment identification and power-control details,
Monarx Malware Monitoring Seal

Proxdose.com is continuously monitored for malware and security threats by Monarx, provided through Bluehost hosting.

Panasonic UD-706 TLD Reader

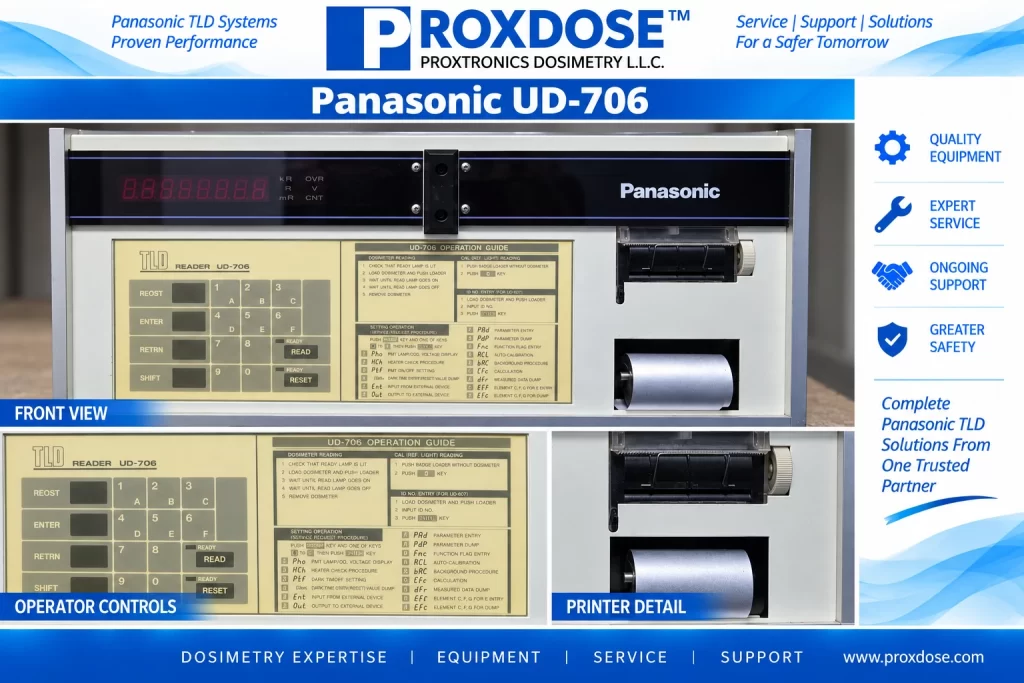

Panasonic UD-706 TLD reader with operator controls and printer detail.

The Panasonic UD-706A is a semi-automatic TLD reader for Panasonic UD-800A series badges. Its optical heating system reads a four-element badge in approximately 30 seconds, then displays the measured doses sequentially.

The reader stores measurement data and element correction factors, supports data correction and statistical calculations, and provides automatic calibration using a calibration badge. A standard RS-232C interface connects to a computer, printer, or other external device.

Key Specifications

• Reader type: Semi-automatic
• Compatible badges: Panasonic UD-800A series
• Heating method: Optical heating
• Measuring time: Approximately 30 seconds per four-element badge
• Badge loading: Individual badge loading
• Badge identification: Seven-digit optical ID reading
• Storage: 500 data entries and 500 element correction factors
• Data functions: Correction, mean, and standard deviation
• Calibration: Automatic using a calibration badge
• Interface: RS-232C
• Dimensions: Approximately 493 W × 366 D × 237 H mm
• Weight: Approximately 27 kg

Contact PROXDOSE
Download Specifications

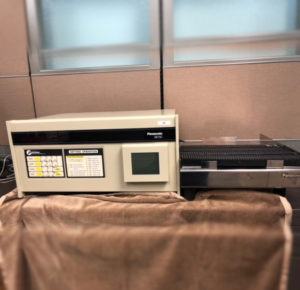

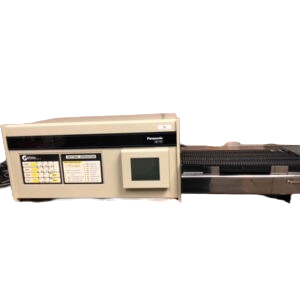

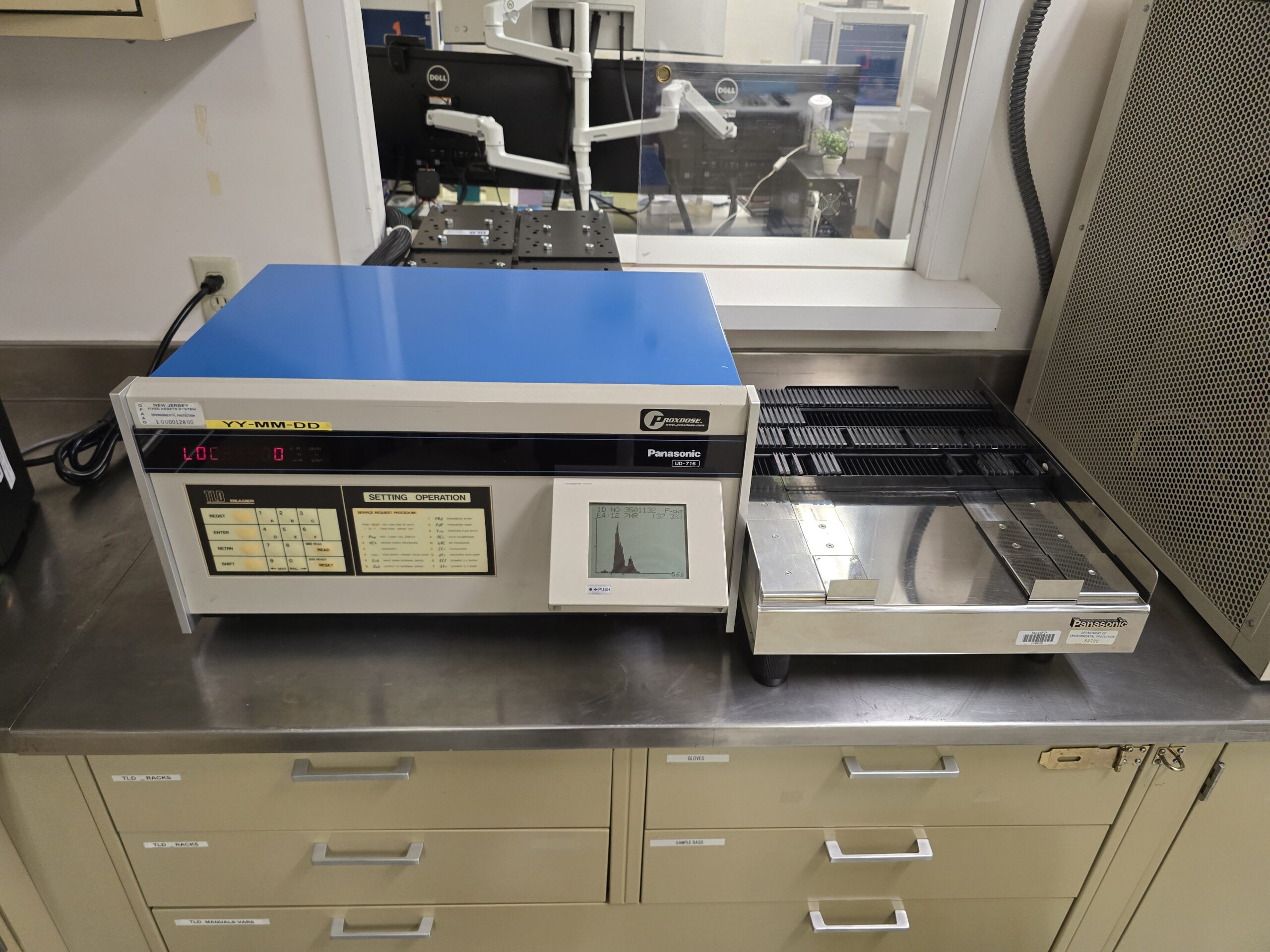

Panasonic UD-716AGL TLD Reader

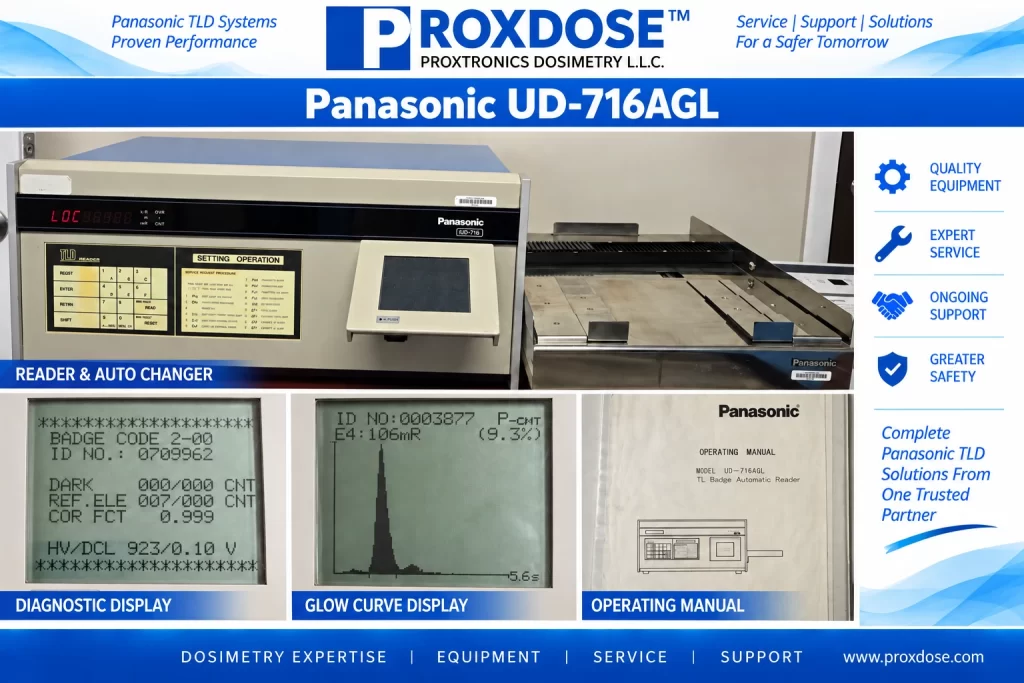

Panasonic UD-716AGL TLD reader and auto changer with diagnostic display, glow curve and operating manual.

The Panasonic UD-716AGL is a compact automatic TLD reader for Panasonic UD-800 series badges. Its non-contact optical heating system supports badge measurement with a glow curve display.

The reader accepts magazines holding up to 50 badges. With the optional UD-736AB auto changer, it supports continuous processing of up to 200 badges. An RS-232C interface provides connection to a computer for data handling.

Key Specifications

• Compatible badges: Panasonic UD-800 series
• Heating method: Infrared optical heating
• Measuring time: Approximately 35 seconds per four-element badge
• Magazine capacity: Up to 50 badges
• Optional auto changer: Panasonic UD-736AB
• Capacity with auto changer: Up to 200 badges
• Glow curve display: Available
• Glow signal output terminals: Included as standard
• Data storage: Measurement data and correction factors for up to 500 badges
• Computer interface: RS-232C

Contact PROXDOSE
Download Specifications

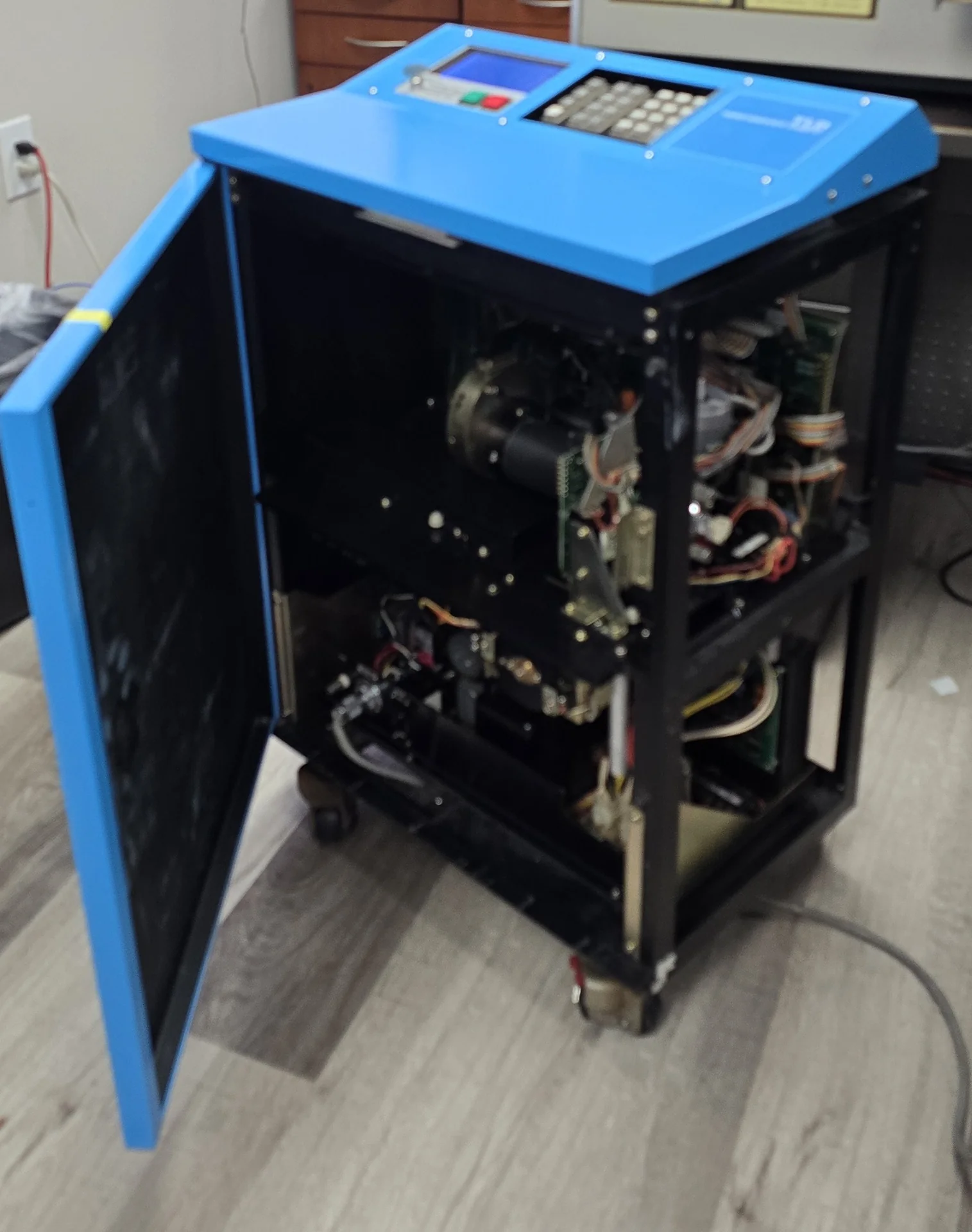

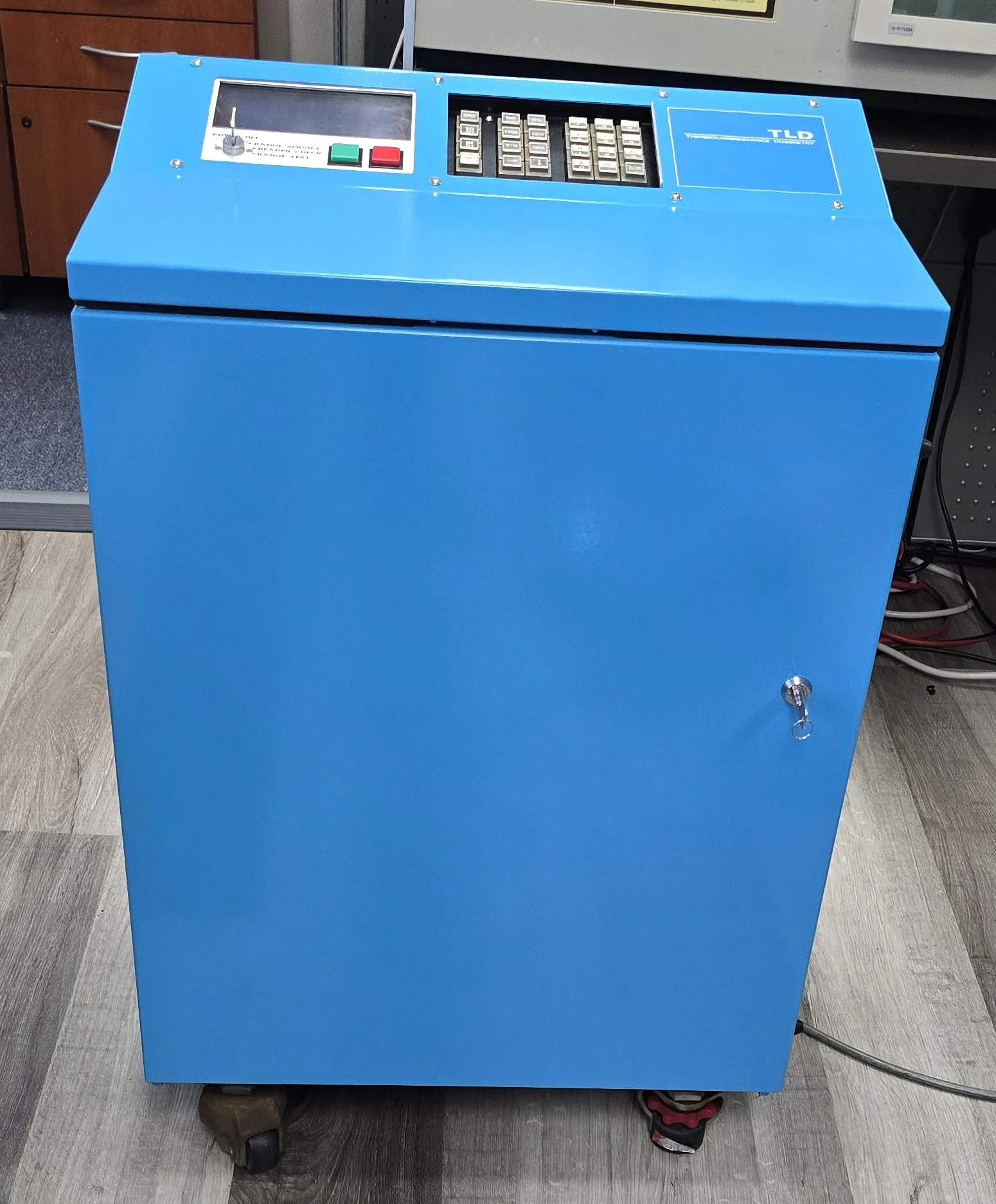

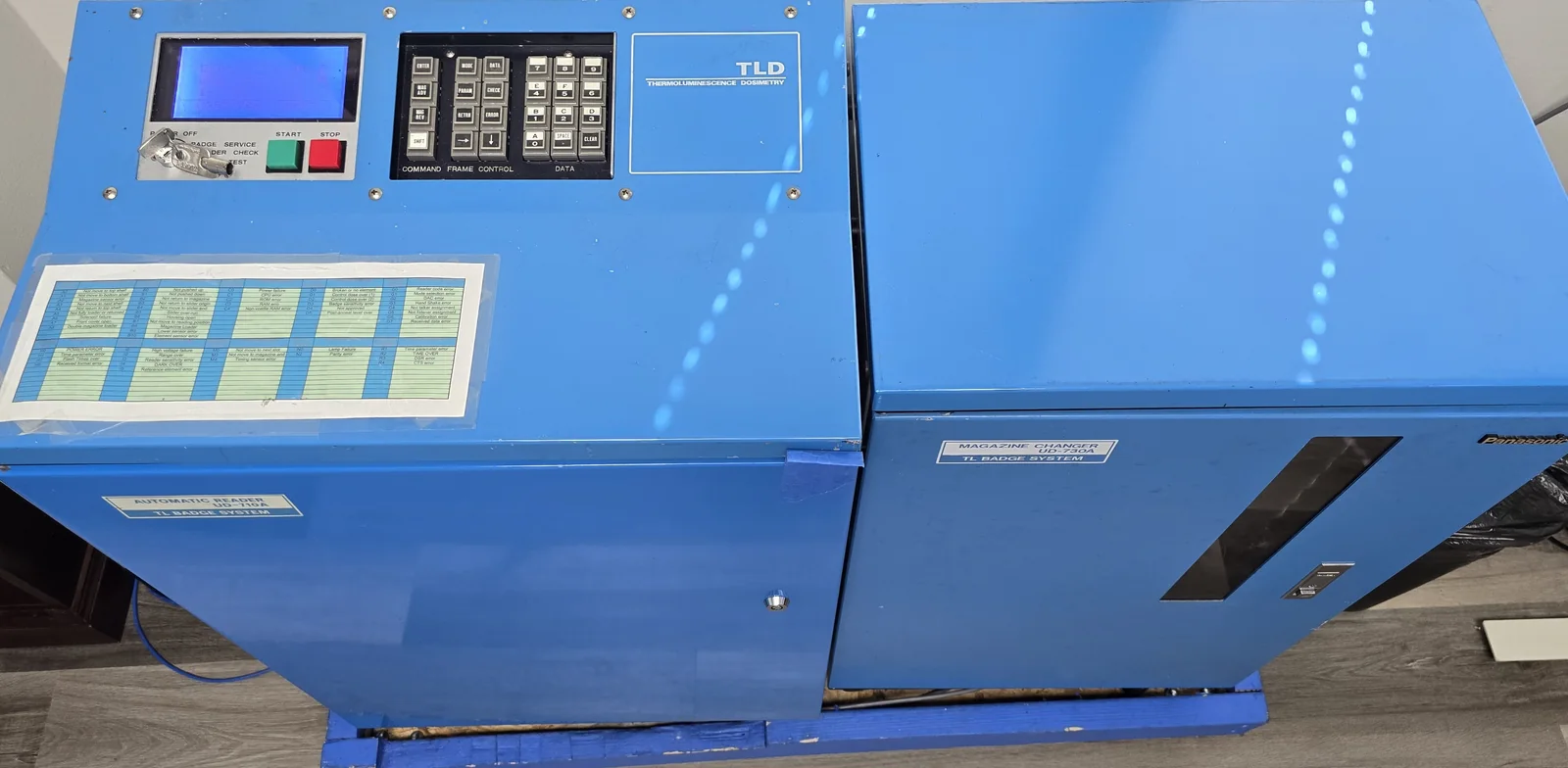

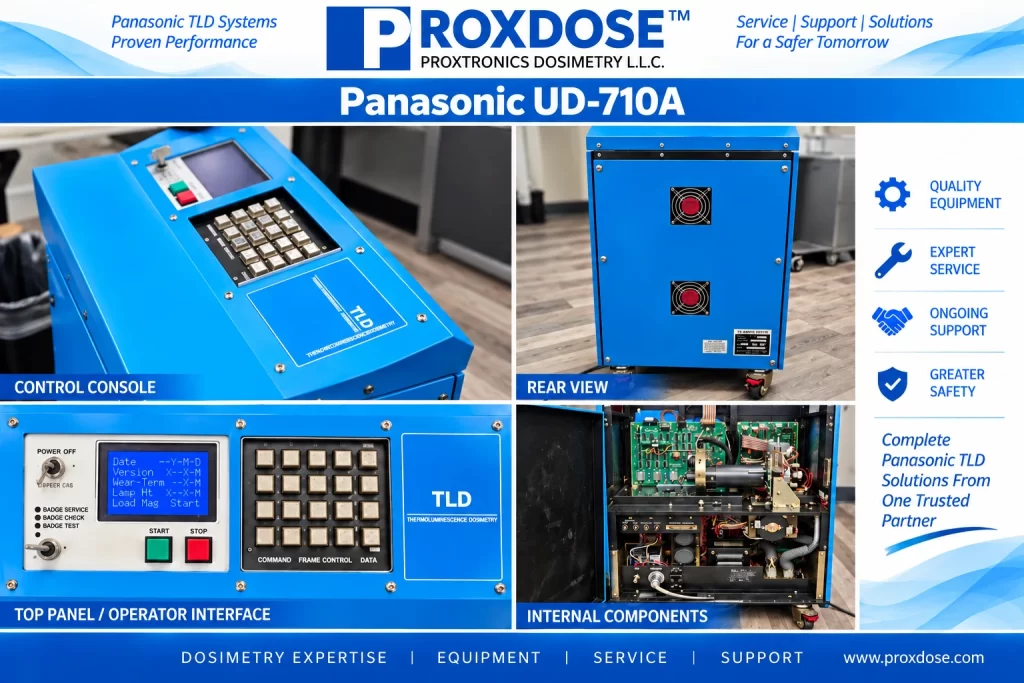

Panasonic UD-710A TLD Reader

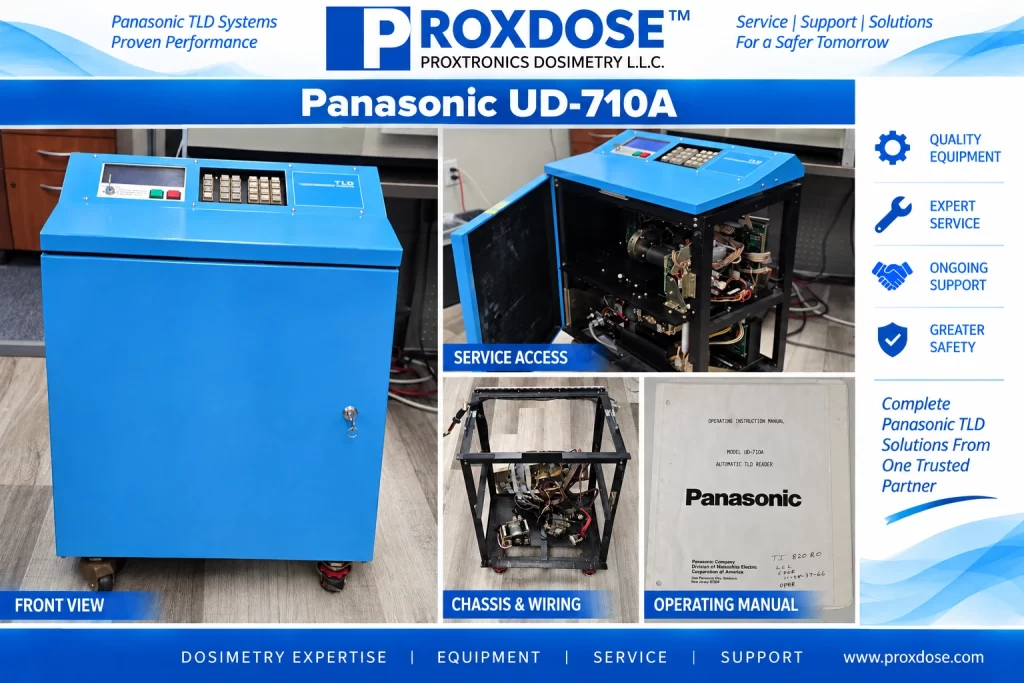

Panasonic UD-710A TLD reader with service access, chassis wiring and operating manual.

The Panasonic UD-710A is an automatic TLD reader for Panasonic UD-800 series badges. Its built-in auto changer supports batch processing of up to 500 badges across 10 magazines.

Non-contact optical heating provides fast badge processing without a gas supply or separate annealing oven. Automatic functions include badge ID reading, annealing for reuse, and sensitivity correction using a built-in reference light source.

Key Specifications

• Compatible badges: Panasonic UD-800 series
• Batch capacity: Up to 500 badges
• Magazine loading: 10 magazines, 50 badges each
• Heating method: Non-contact optical heating
• Measuring time: Approximately 20 seconds per four-element badge
• Badge identification: Optical ID code reading
• Automatic functions: Preheating, annealing, and sensitivity correction
• Self-checks: Optical path, photomultiplier sensitivity, and heating stability
• Glow curve data capture: Available via a glow curve interface

Contact PROXDOSE
Download Specifications

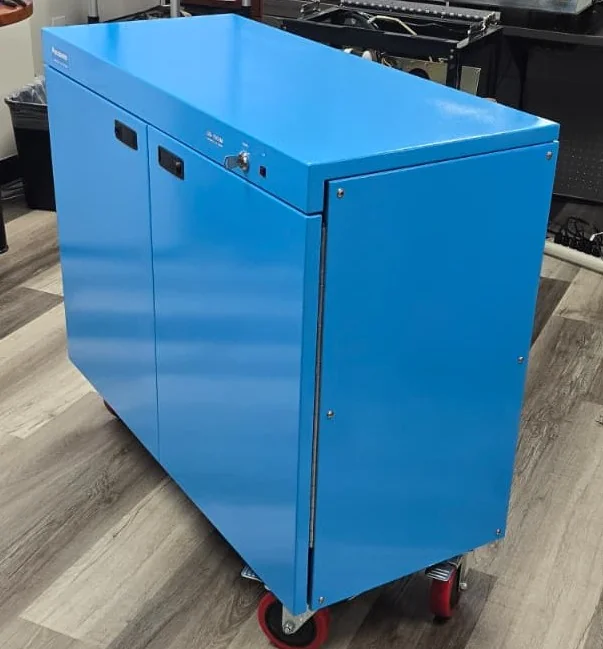

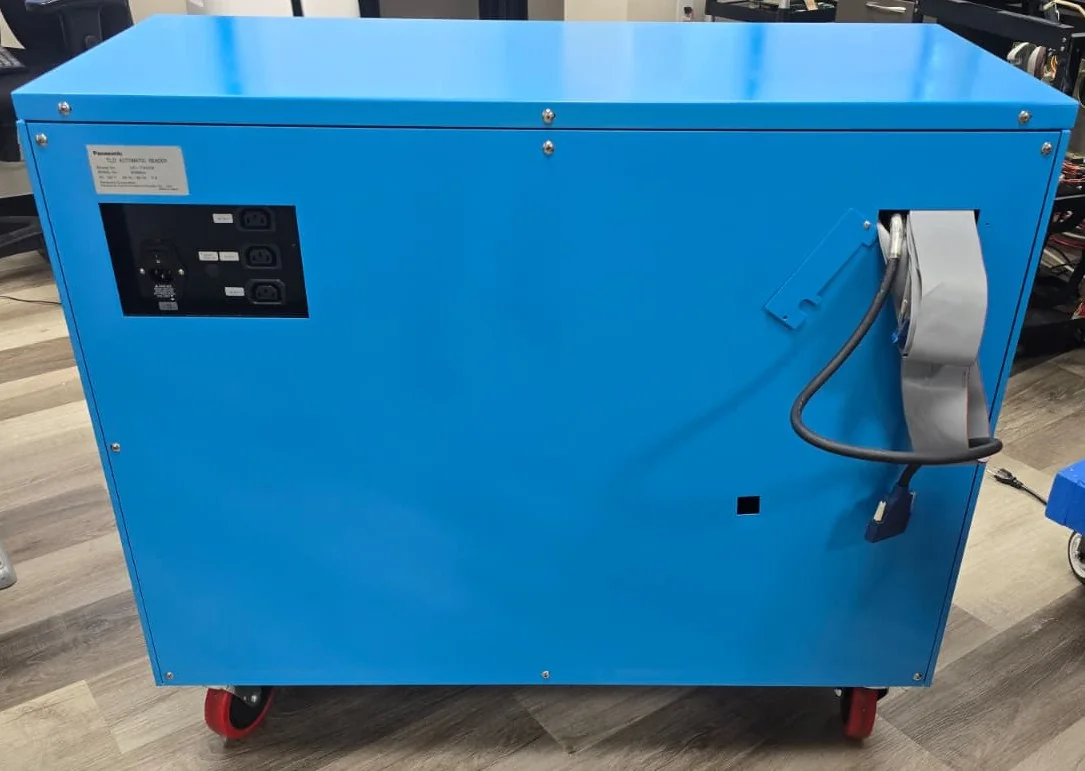

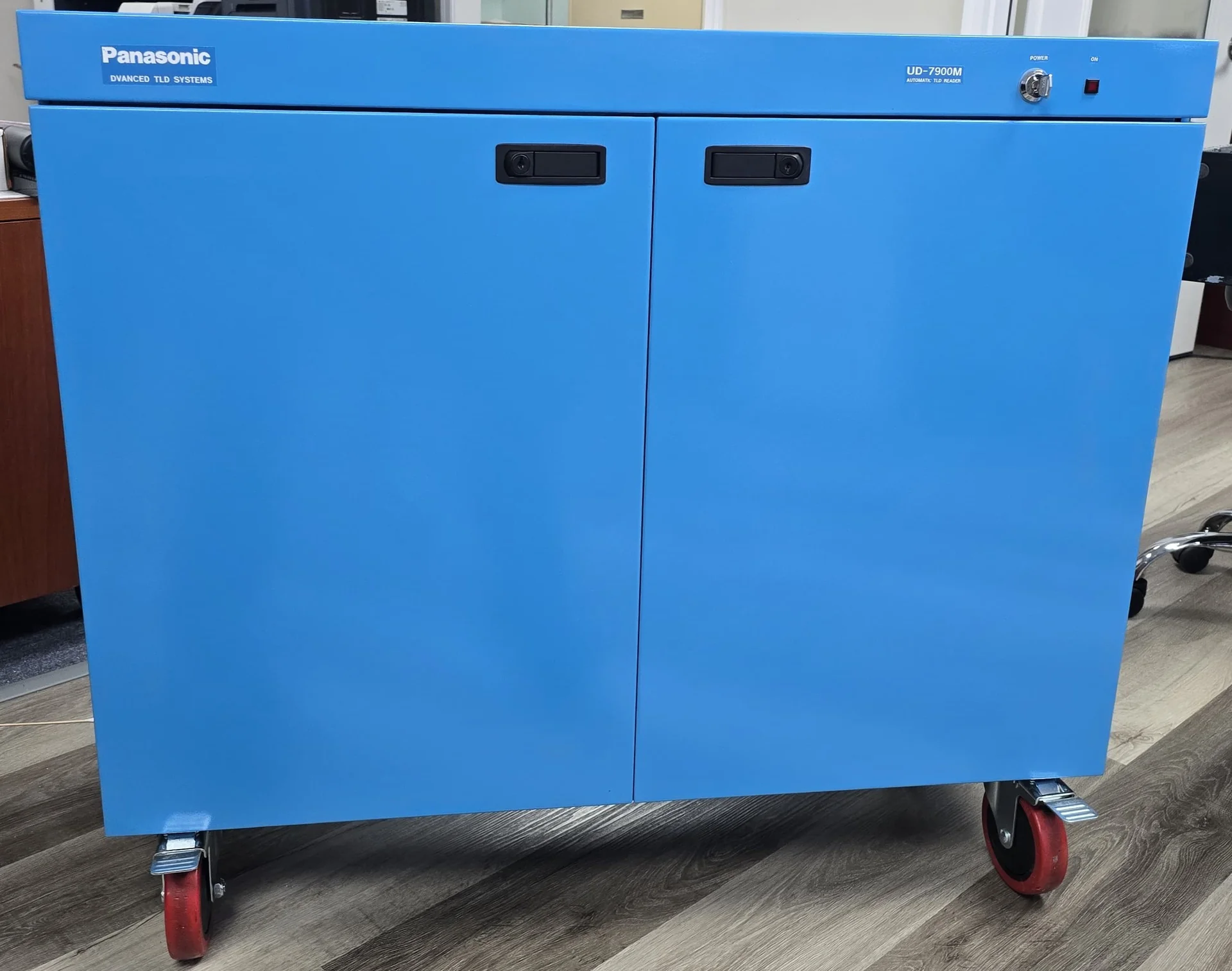

Panasonic UD-7900 TLD Reader

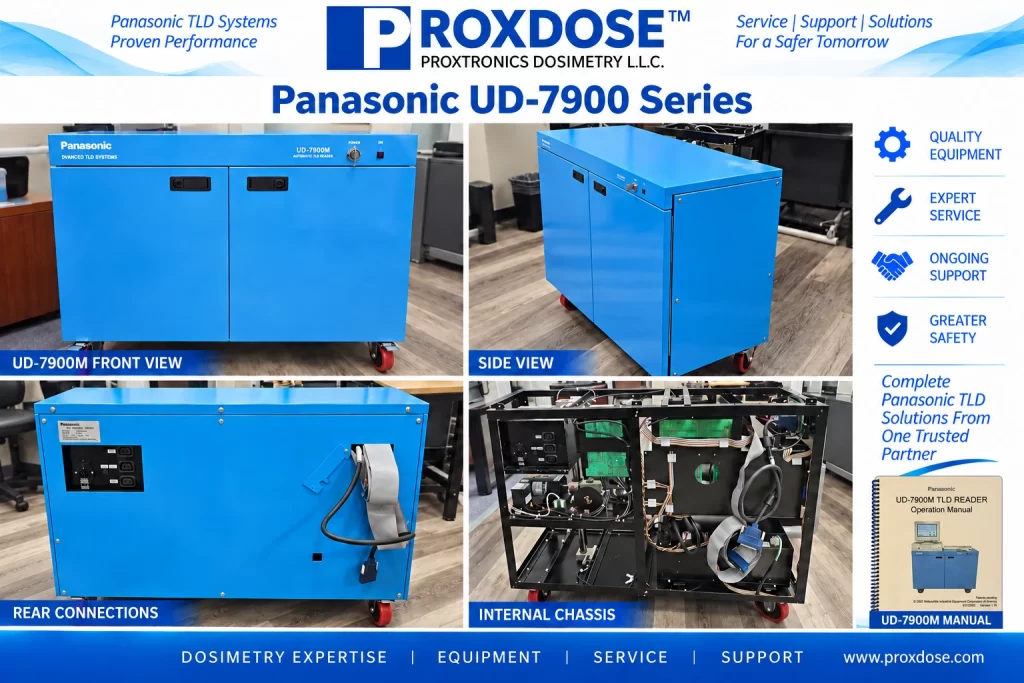

Panasonic UD-7900 series TLD reader with cabinet views, internal chassis and UD-7900M manual.

The Panasonic UD-7900 is an automated TLD reader for UD-800 series badges. Its built-in auto changer supports batch processing of up to 500 badges.

Non-contact optical heating requires no gas supply or separate annealing oven. Selectable heating modes accommodate UD-710 and UD-716 heating cycles, with a built-in glow curve interface and computer-based control.

Key Specifications

• Compatible badges: Panasonic UD-800 series
• Batch capacity: Up to 500 badges
• Magazine loading: 10 magazines, 50 badges each
• Heating method: Non-contact optical heating
• Fast mode: Approximately 20 seconds per four-element badge
• Slow mode: Approximately 35 seconds per four-element badge
• Control: Windows-based software
• Communications: RS-232 interface
• Glow curve interface: Built in
• Heating temperature profile: Electronic real-time monitoring

Contact PROXDOSE
Download Specifications

Panasonic UD-794 TLD Irradiator

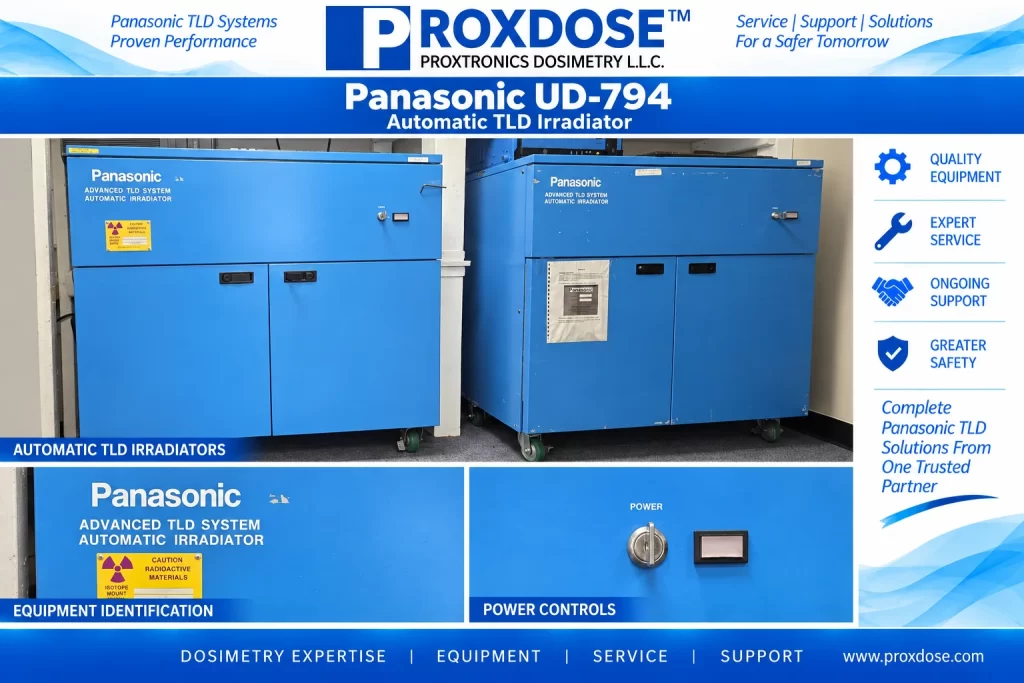

Panasonic UD-794 automatic TLD irradiators with equipment identification and power-control details,

Panasonic UD-794 TLD Irradiator

The Panasonic UD-794 is a computer-controlled TLD irradiator for Panasonic UD-800 series badges. It supports a listed capacity of 500 badges, with irradiation cycle time dependent on the required dose.

Contact PROXDOSE for equipment availability, configuration details, and support.

Key Specifications

The Panasonic UD-794 is a computer-controlled TLD irradiator for Panasonic UD-800 series badges. It supports a listed capacity of 500 badges, with irradiation cycle time dependent on the required dose.

Contact PROXDOSE for equipment availability, configuration details, and support.

K• Compatible badges: Panasonic UD-800 series

• Badge capacity: 500 badges
• Control: Windows-based software
• Source: Cs-137; historical nominal specification of 2.0 Ci
• Cycle time: Dependent on dose
• Power supply: 120 VAC ±10%, 60 Hz
• Power consumption: 150 W maximum
• Operating temperature: 5–35°C
• Operating humidity: 20–70% relative humidity
• Dimensions: 1000 W × 1072 H × 550 D mm
• Weight: Approximately 300 kg / 662 lb, excluding computer

Specifications reflect the supplied historical documentation. Confirm installed source activity and individual equipment configuration with PROXDOSE.
